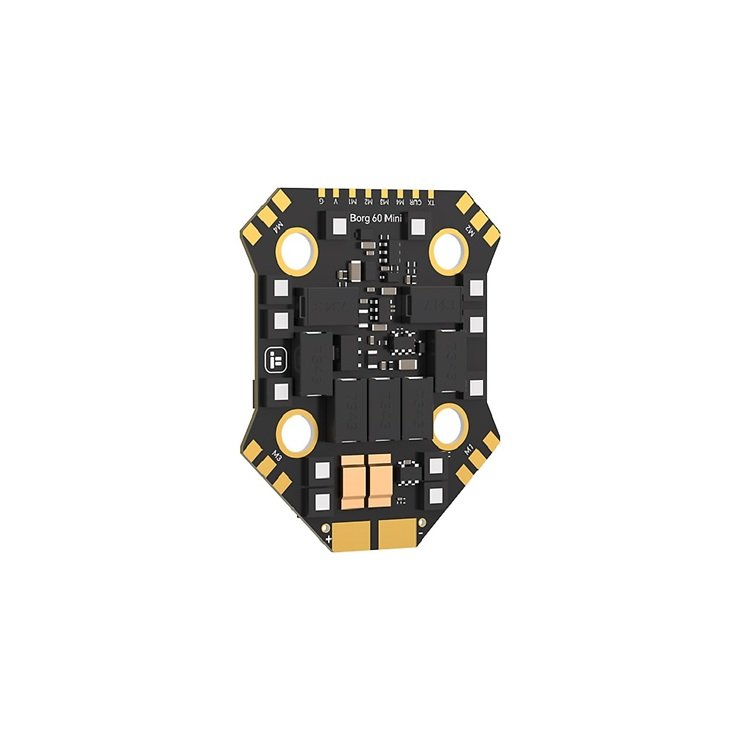

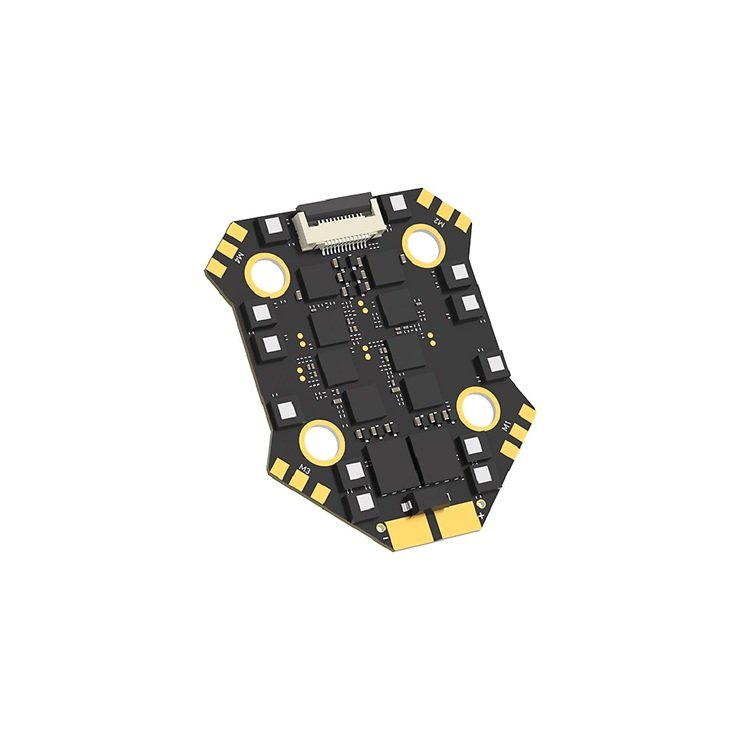

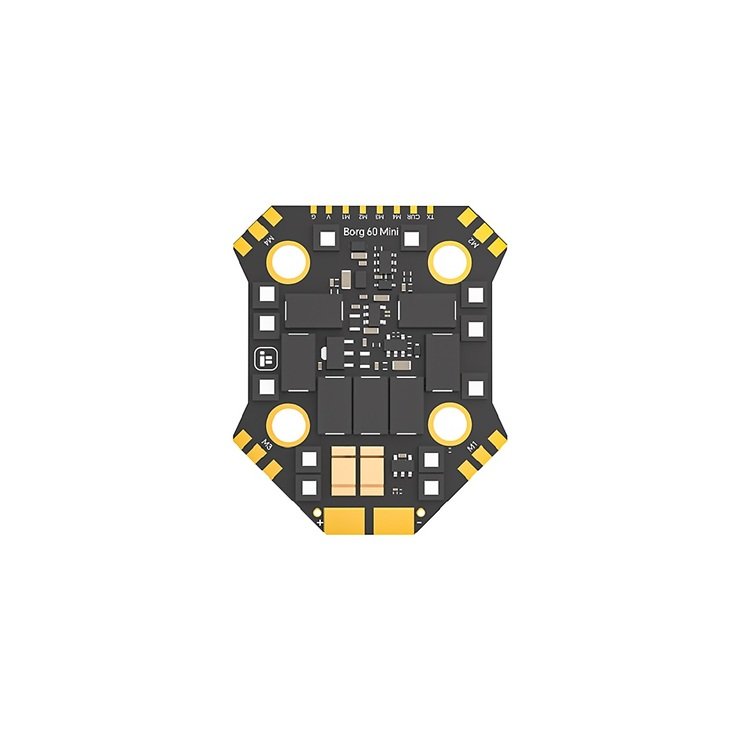

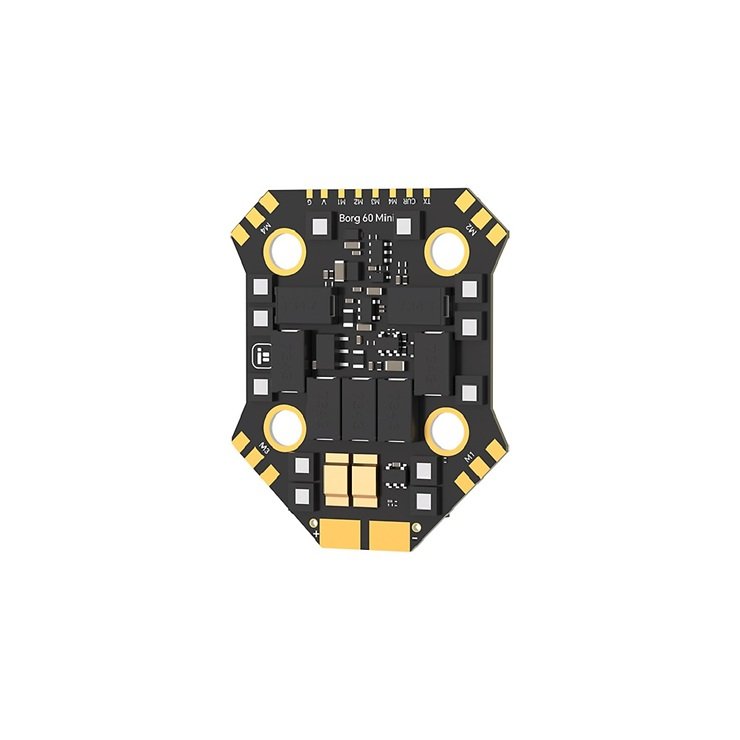

iFlight Borg 60R Mini ESC

iFlight Borg 60R Mini ESC

Product description

With the iFlight Borg 60R Mini ESC you get you a ultra-modern 32-BitESC, which especially for powerful 5-InchFPVRacers developed was developed. Equipped with innovative Functions such as an integrated AntiSparkFilter and high-quality HighPolymerCapacitors, offers this ESC not only exceptional Reliability, but saves also Weight and simplifies the Installation - no external Capacitor more necessary!

Thanks to the FPCRibbon cable connection to the Flight Controller is a safe, interference-free Signal transmission is guaranteed. The massive 8-LayerCircuit board ensures for efficient Power distribution and enables up to up to 60A Continuous current at 65A Burst power - ideal for extreme FPVRacing.

Your Advantages at at a At a glance:

• Supports 2S to 6S LiHVBatteries - maximum Flexibility with the Power supply

• 60A Continuous current and 65A Burst power - ideal for power-hungry Builds

• Integrated AntiSparkFilter protects from Voltage peaks

• Built-in HighPolymerCapacitors - no external Capacitor necessary

• 8-layer PCB for efficient Current conduction and high Load capacity

• FPCRibbonCable connection - safer, vibration resistant Signal transfer

• Supports Telemetry and bidirectional DSHOT - precise Control and Feedback

• Compact 20x20mmMounting design - perfect for modern 5-InchRacingFrames

Technical Specifications

• Product name: Borg Mini 60 ESC

• Input voltage: 2-6S LiHV

• Continuous current: 60A

• Burst current (10 Sec.): 65A

• MCU: STM32G071N

• Driver: FD6288

• Firmware: BL32 (32-Bit ESC)

• FirmwareTarget: IFLIGHT_BLITZ_G3 32.9

• Current sensor: present

• BEC: not present

• Telemetry: supported

• Bidirectional DSHOT: supported

• Protocols: DShot150 / DShot300 / DShot600, MultiShot, OneShot

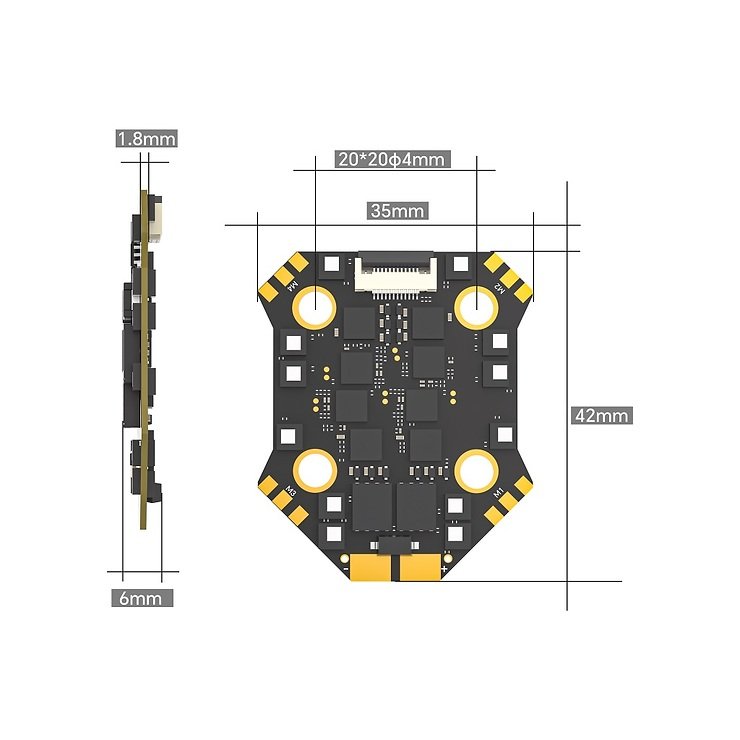

• Dimensions: 42 x 35 mm ±1 mm

• Mounting pattern: 20 x 20 mm (Drill hole Ø 4 mm)

• Weight approx. 9,8 g ±1 g
