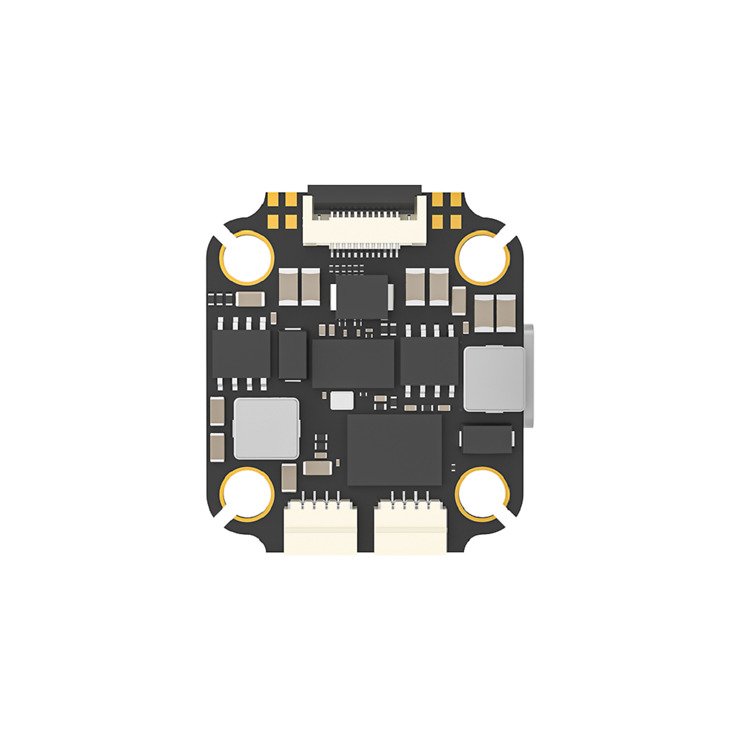

iFlight Borg F7 Mini Flight Controller

iFlight Borg F7 Mini Flight Controller

Product description

Discover the new Borg Series - where performance meets precision!
The Borg F7 Mini Flight Controller has been specially developed for FPV racing and delivers absolute top performance in the smallest of spaces. With its state-of-the-art electronics, reliable connections and innovative features, it sets new standards in the racing sector.

With support for 4S to 8S batteries, an integrated 12V BEC with remote VTX control and powerful sensors, the Borg F7 Mini is the perfect choice for racers who don't want to compromise.

Optimized for:

• FPV racing drones
• High-performance racing builds
• Pilots who demand maximum control and telemetry

Main features:

• Voltage input: 4S to 8S LiPo / LIHV
• 12V BEC with switching function - switch VTX on and off conveniently via remote control
• Robust FPC cables & SH1.0 connectors for secure connection to ESC & components
• Compatible with DJI, Smartaudio, IRC Tramp & HDZero
• 32MB black box flash for precise tuning and analysis
• Supports Betaflight & INAV

Technical data - Borg F7 Mini FC

• Input voltage: 4S-8S LiPo / LIHV
• MCU : STM32F722RET6
• Gyro: ICM42688
• Barometer: SPA06-003
• OSD chip: AT7456E (LGA)
• Flash memory: 32MB (black box)
• UARTs:6
• Motor outputs:4
• I2C: Yes
• VTX protocols: DJI MSP, Smartaudio, IRC Tramp, HDZero
• LED controller: Yes
• Beep pad: Yes
• BEC outputs: 5V @ 2.5A, 12V @ 2A (with VTX switch)
• Firmware (Betaflight/INAV): IFLIGHT_BLITZ_F722
• Mounting pattern:20x20mm (hole diameter: 4mm)
• Dimensions: 27 x 30.6 mm ±1
• Weight: 6.8g ±1

Connection recommendation (UART assignment)

• UART 1: VTX HD or analog
• UART 2: Receiver
• UART 3-5: GPS or sensors
• UART 6: ESC telemetry

VTX_ON_OFF Mode Command
