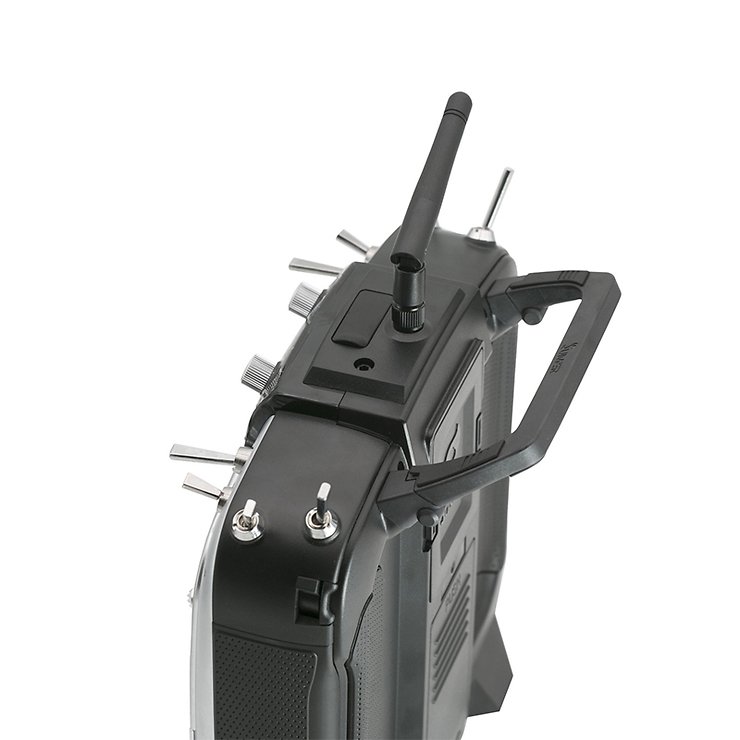

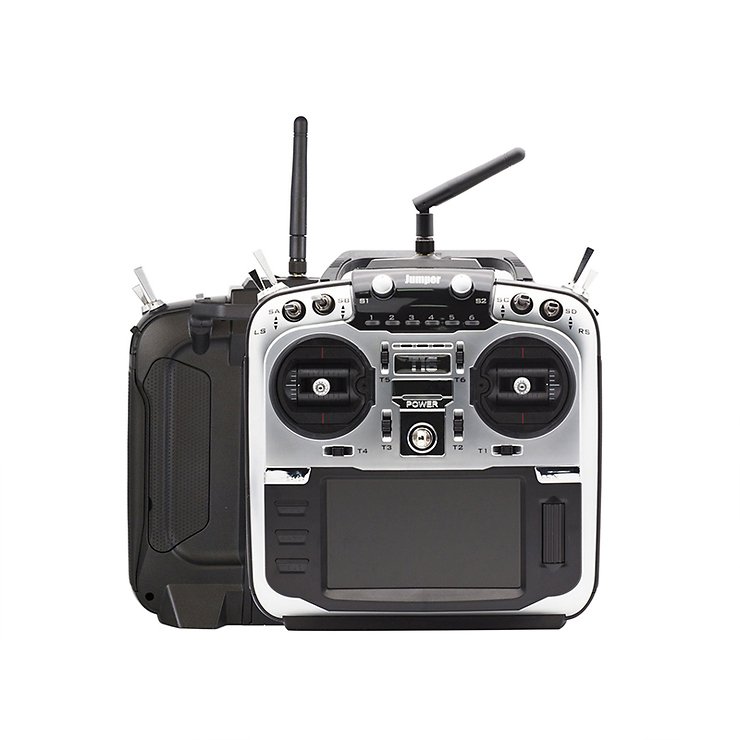

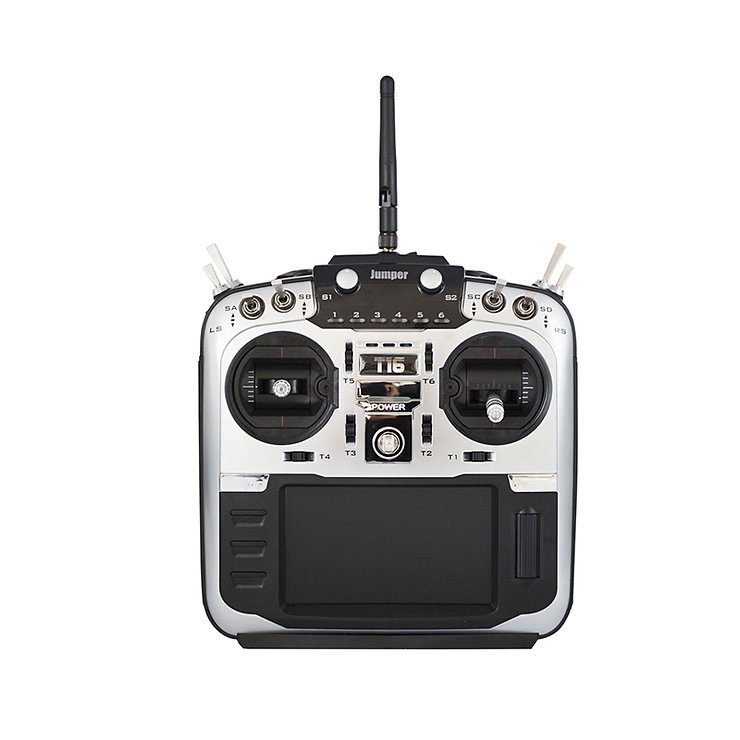

Jumper T16 remote control mode 2 plus JP4in1 module multi protocol
Jumper T16 Remote Control Mode 2 open source multi protocol with JP 4in1 module.
Jumper XYZ
Our vision and our goal.

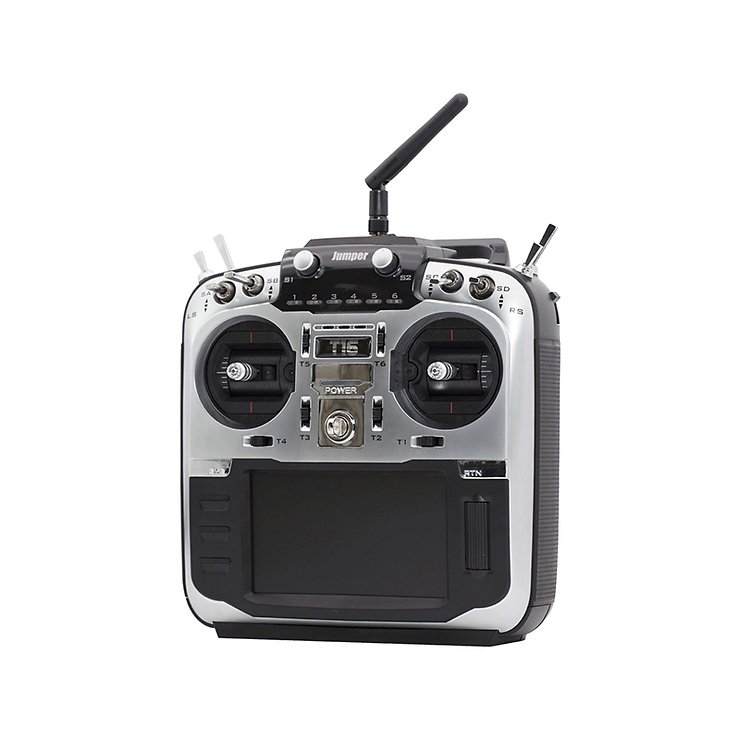

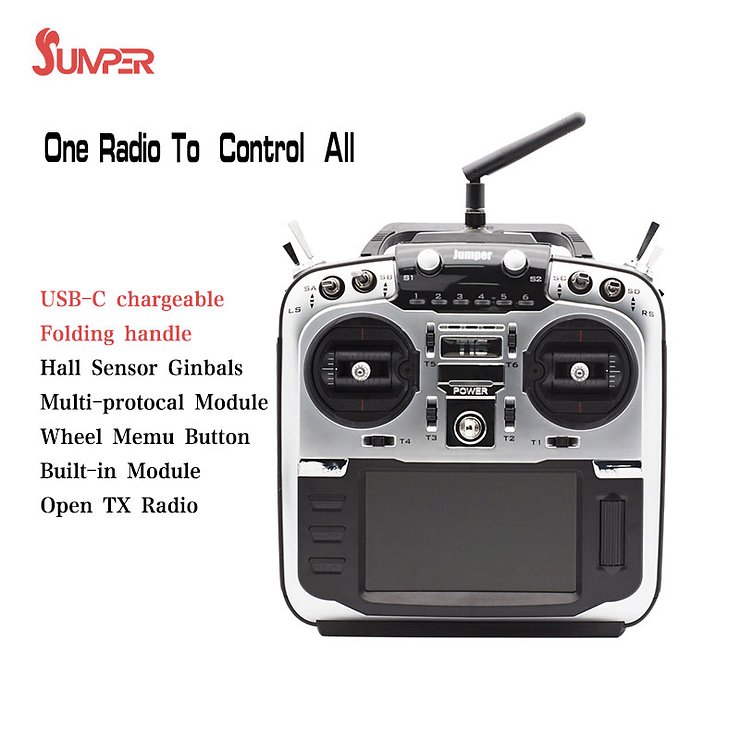

The most cost-effective and powerful open source remote control on the market today. The Jumper T16 is really the all in one solution to everything. With angle-adjustable, ultra-gentle and double bearing precision cardan elements. A large 4.3-inch display that is more than enough for all input control. The Jumper T16 remote control has built-in 6-position buttons for professional flight control systems. JR module bay for TBS Crossfire modules and many more features, the T16 offers a remarkable deal for this price.
You as a user can determine.
The Jumper team never wanted to rest and was looking for a way to put the maximum amount of flexibility into the hands of the pilot or RC enthusiast, always keeping the price in mind. With the advances in technology and material costs, there's really no reason for a high-end remote to spend too much money. The Jumper T16 remote control is the best proof of that. We not only met the expectations but also exceeded them. We at Jumper are very proud of it - Jumper T16 changes everything.
Ergonomics and functionality.
The Transmitter Jumper T16 has been extensively tested for comfort and functionality. We've reviewed all the feedback from our previous products together with community feedback to make the Jumper T16 what it is now.
Technical specifications
Jumper JP4-in-1 module
The jumper module JP4IN1 contains the RF chip modules CC2500, NRF24L01, A7105 and CYRF6936, all of which are integrated on one board. This module can convert standard PPM signals from module-equipped remote controls to the RF protocols used by most remote controllers in the market today (see RF-Chip Data below). The module is plug-and-play compatible with the FrSKY series radios and does not require complex cabling or hacking to get up and running. The module is a great way to improve your flight enjoyment. The jumper JP4IN1 module can also be upgraded via the USB input
Technical specifications
JP4-in-1 Specifications:
Working voltage: 6-9V
Working current: <= 100 mA
Operating frequency: 2.4 G ISM band
RF power: + 22 dBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Modular Bay Compatibility: FRSky, Jr and other dimensions: 64 * 49 * 33 (without antenna)
Net weight: 42g (including antenna)
Software compatibility: Suitable for remote controls with OpenTX or er9x / ersky9x
Firmware upgradable: Yes via USB.
RF chip data
Cypress Semiconductor CYRF6936: DSM / DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
JumperTX is an extension of the original OpenTX project. JumperTX is managed and distributed independently of the jumper technology. JumperTX is not connected to the OpenTX project.

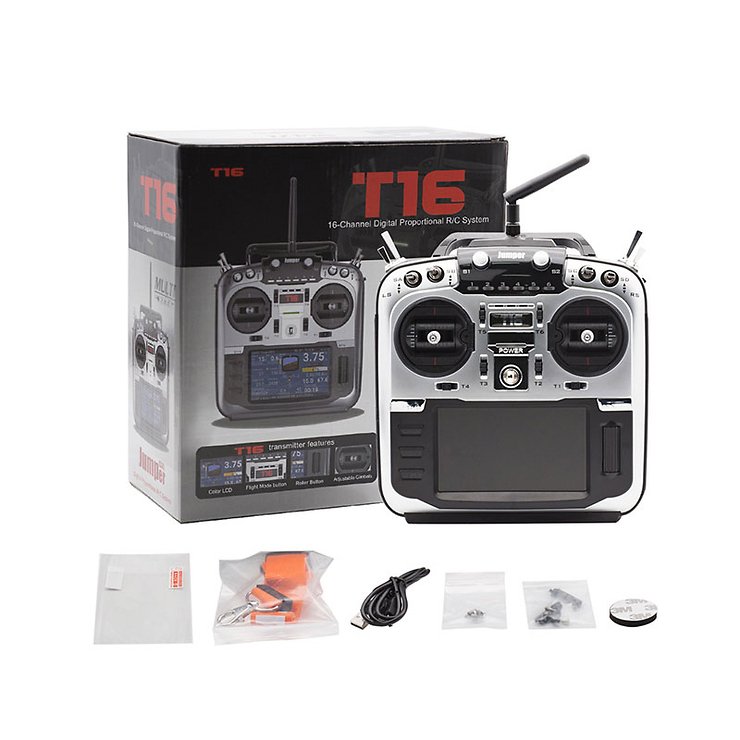

content
Remote control Jumper T16
JP 4 in1 module
USB cable
strap
Battery Case (batteries are not included)
| Lieferumfang | Fernsteuerung Jumper T16 Pro Hall in der neuen V2 Version |
|---|---|
| Bestellnummer | JUM-T16 |
| EAN | 4260449984231 |
| Hersteller | Jumper |
