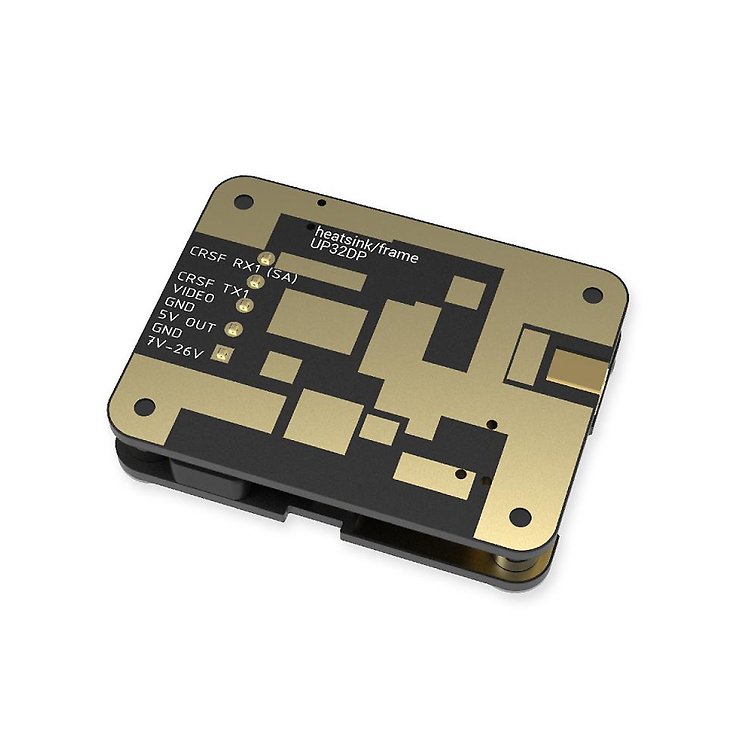

TBS Unify Pro 32DP MMCX video transmitter

TBS Unify Pro 32DP MMCX video transmitter

Product description

The TBS UNIFY PRO32 DP (MMCX) is a high-quality video transmitter (VTx), specially developed for use in FPV drones. It impresses with its improved robustness, compact size and low power consumption. Thanks to advanced heat dissipation technology, it does not require an additional heat sink or fan, which further increases its performance and durability.

Experience the best video transmission with the TBS UNIFY PRO32 DP (MMCX) and take your FPV experience to the next level!

Highlights

• World's lightest 3 Watt video transmitter
• Frequency range: 4990 MHz - 6030 MHz
• OSD configuration via TBS Smart Audio 2.1 (via Betaflight, TBS Crossfire / Tracer or Ardupilot)
• One-button frequency and power adjustment
• LUA support for CRSF users
• MMCX connector
• 2-6S input range
• Double noise filtering (>63dB SNR)
• Optimized heat dissipation, no heat sink required
• Optionally available tuned circular polarized antenna

Specifications

• Operating voltage: 6V - 25V (2 - 6S)
• Video input impedance: 75 Ohm
• SNR: >63dBm
• Weight: 8.7g
• Dimensions: 37 x 25 x 5.8mm
• Antenna connection: MMCX
• Video format: NTSC/PAL
• Output power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 33dBm+ (2000mW+)
