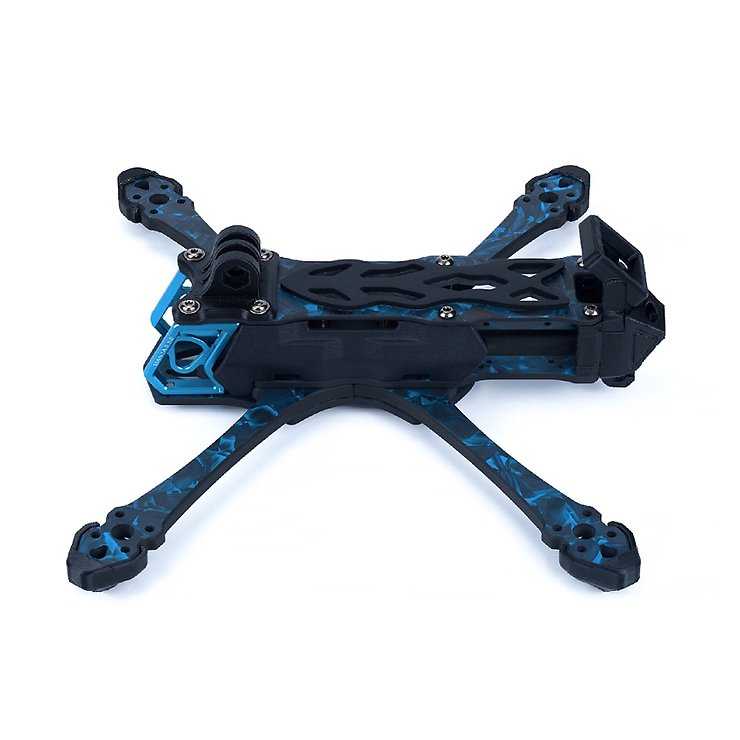

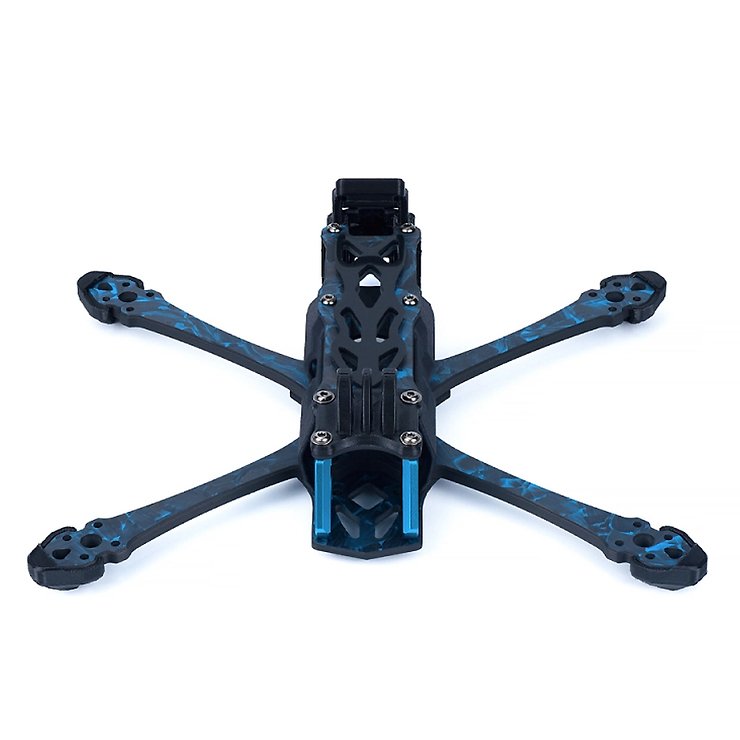

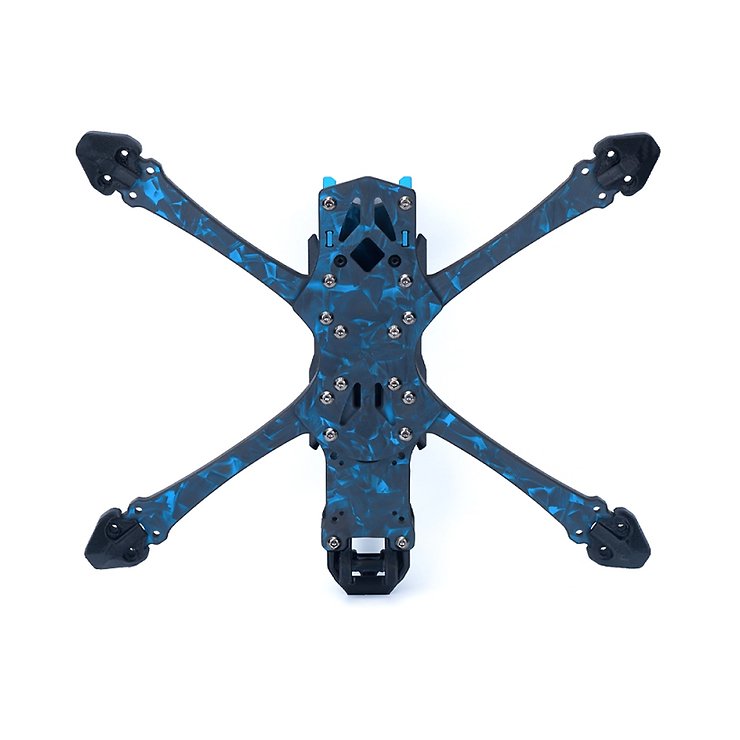

Axisflying Manta5 SE FPV Frame 5 inch Black Blue

Axisflying Manta5 SE FPV Frame 5 inch Black Blue

Product description

Experience maximum performance and precision with the AxisFlying Manta5 SE. This exceptional 5-inch frame is specially designed for demanding FPV pilots who appreciate clear HD video transmissions and impressive flight times. The Squashed-X geometry and high-quality T700 carbon with striking blue aluminum details give this frame not only a unique look, but also optimal stability and maneuverability. Perfectly compatible with the DJI O3 system and ideal in combination with a 6S LiPo battery, max. 5.1-inch propellers and powerful 2207 motors for ultimate freestyle and racing performance.

Product specifications

• Geometry: Squashed X
• Wheelbase: 223 mm
• Material thickness: base plate 3 mm, top plate 2 mm, center plate 3 mm, arms 5.5 mm
• Material: T700 carbon with blue aluminum components
• Maximum stack height: 20 mm
• Camera range: 14-20 mm
• Stack mounting: 20 mm (M3) & 30.5 mm (M3)
• VTX mounting: 20 mm & 25 mm (M2)
• Propeller size: max. 5.1 inch
• Motor mount: 16 x 16 mm (M3)
• Weight: approx. 155 g (incl. TPU)
