SpeedyBee F405 Mini BLS 35A 20x20 Stack

Product description

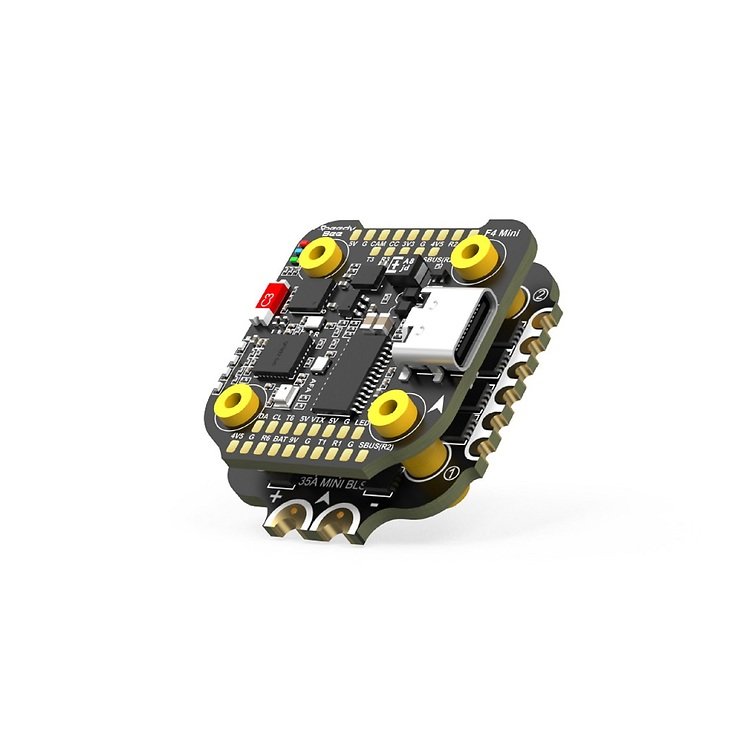

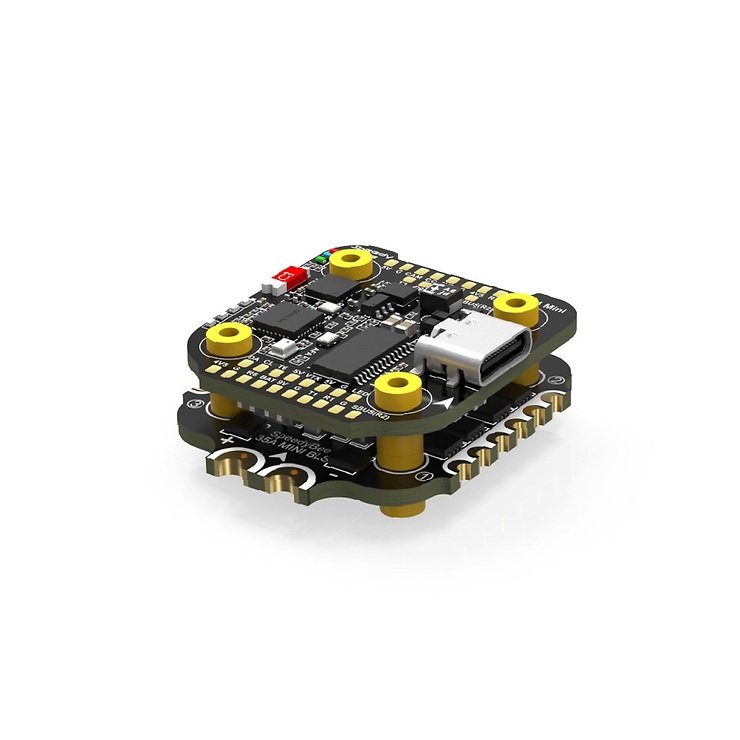

SpeedyBee F405 Mini BLS 35A 20x20 Stack

The SpeedyBee F405 Mini BLS 35A 20x20 Stack is a compact and powerful solution for FPV racing and freestyle drones. This stack combines the SpeedyBee F405 Mini Flight Controller with the SpeedyBee BLS 35A Mini V2 4-in-1 ESC and offers advanced features in a small form factor.

Features

  • Bluetooth support: Enables connection to the SpeedyBee app for configuration of the flight controller and ESC. Bluetooth functionality requires activation of the MSP switch on UART 4 with a baud rate of 115200.
  • DJI Air Unit Compatibility: Direct soldering enables connection to all DJI Air Units, including DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1.
  • Power supply: Supports 3-6S LiPo batteries.
  • Mounting: 20 x 20mm with 3.5mm hole size, compatible with M2 and M3 screws/silicone grommets.
  • Weight: The flight controller weighs 9.6g and the ESC 7.2g.

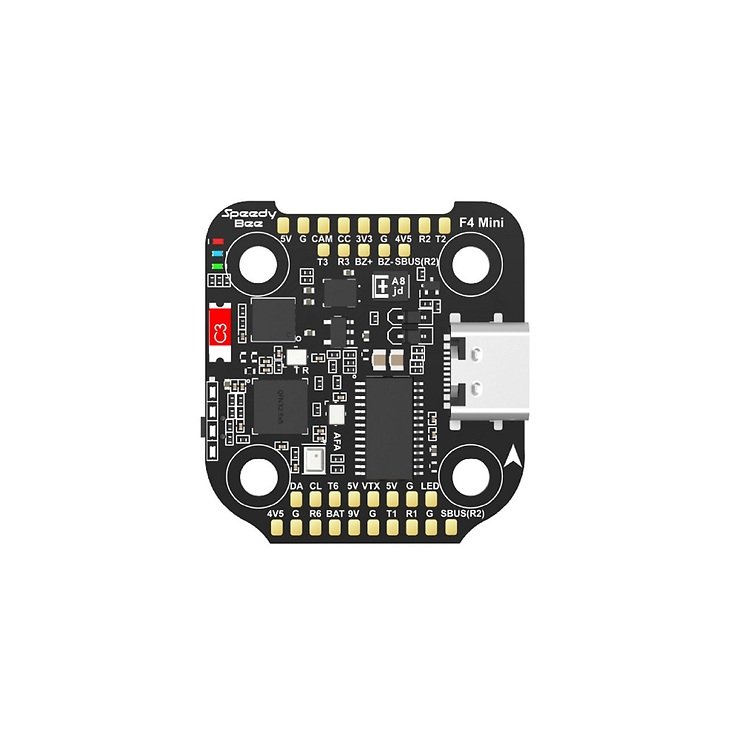

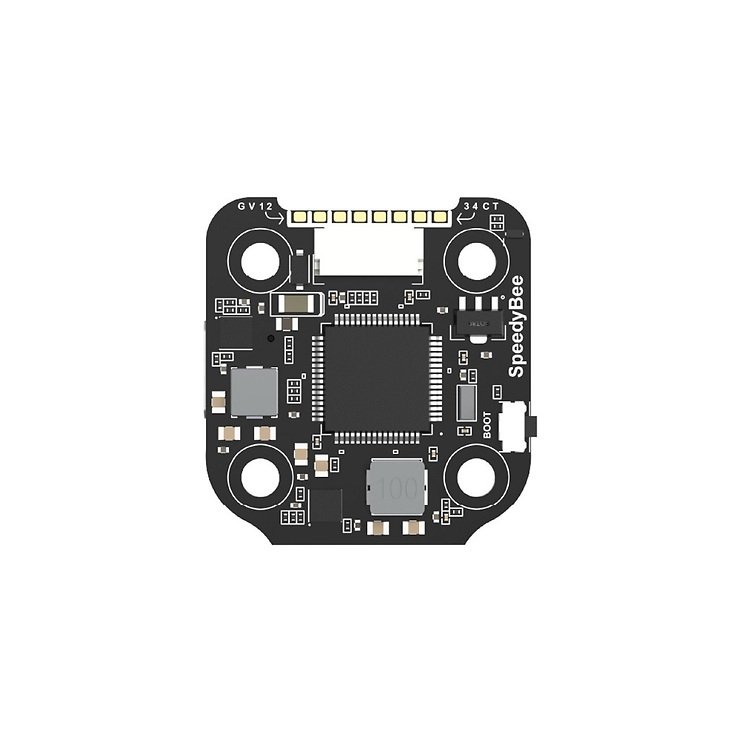

Specifications of the flight controller

  • MCU: STM32F405
  • IMU (Gyro): ICM42688P
  • USB port type: Type-C
  • Barometer: Integrated
  • OSD Chip: AT7456E
  • Blackbox: 8MB Onboard Flash
  • Current sensor input: Supported
  • 5V output: 4 groups with a total load of 2A.
  • 9V output: 1 group with total 3A load.
  • 3.3V and 4.5V outputs: Supported
  • UART: 6 sets
  • I2C: Supported

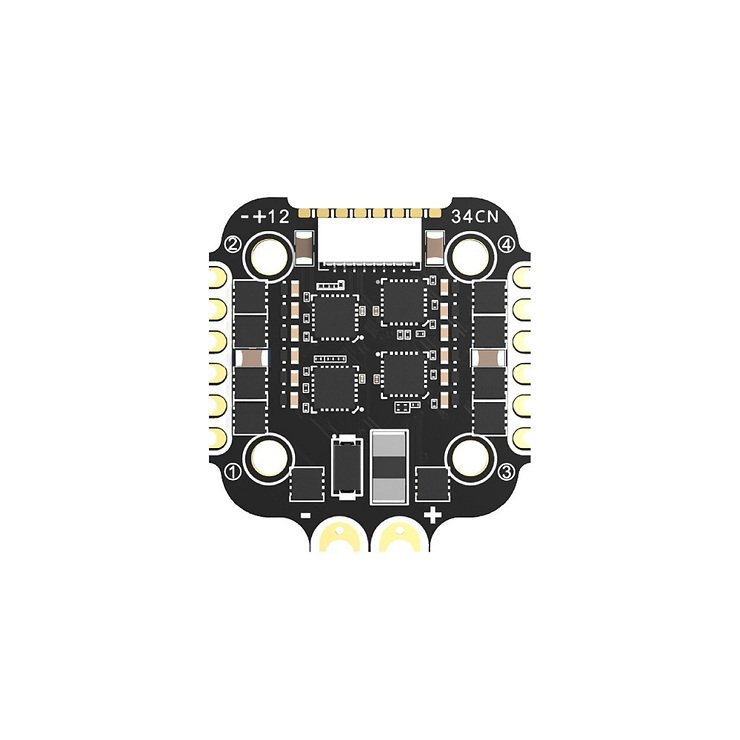

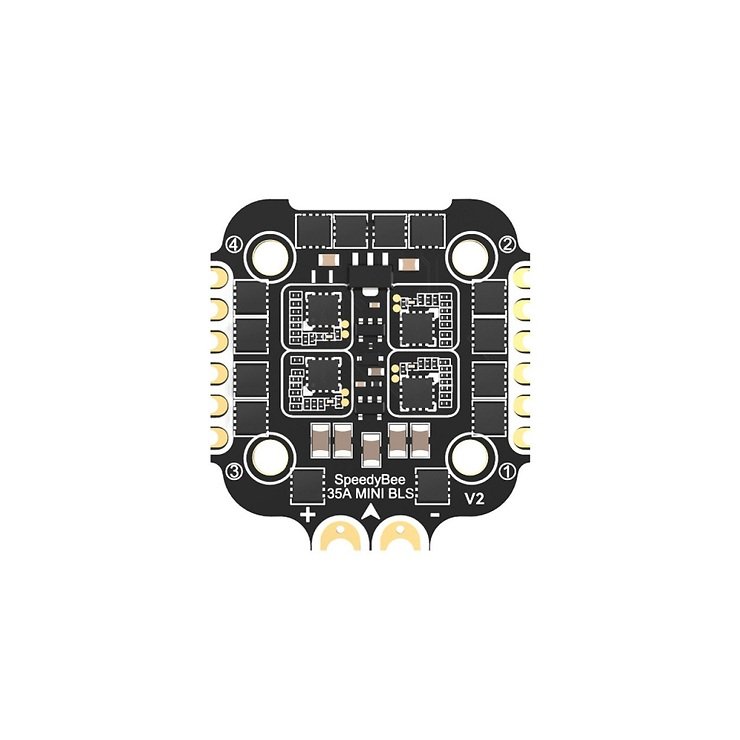

Specifications of the ESC

  • Firmware: BLHeli_S J-H-40
  • Continuous current: 35A * 4
  • Peak current: 45A (5 seconds)
  • ESC protocol: DSHOT300/600
  • Current sensor: Supported

General features

  • Compact Design: Ideal for tight builds, the stack provides a powerful control and ESC solution in a small space.
  • Advanced connectivity: In addition to Bluetooth support, the flight controller offers direct soldering capabilities for the DJI Air Unit and other components.
  • Robust construction: The use of high-quality materials and advanced manufacturing techniques ensures durability and reliability.

The SpeedyBee F405 Mini BLS 35A 20x20 Stack is the ideal choice for drone builders looking for a compact but powerful solution for their FPV drones, with easy configuration via the SpeedyBee app and full support for DJI Air Units.

scope of delivery
  • 1x SpeedyBee F405 Mini Flugsteuerung
  • 1x SpeedyBee 35A BLHeliS Mini V2 4-in-1 ESC
  • 1x Anleitung & App Download Karte
  • 1x 35V 470uF Kondensator
  • 1x SH 1.0mm 25mm-langes 8pin Kabel (für FC-ESC Verbindung)
  • 1x DJI 6-pin Kabel (80mm)
  • 1x XT30 Stromkabel (Länge: 7cm)

M2 Zubehör:

  • 5x M2 Silikon-O-Ring
  • 5x M2 Nylon Sechskantmutter
  • 1x M2 (Lochdurchmesser) * 7.6mm (Höhe) Anti-Vibrations Silikon Grommets
  • 4x M2 (Durchmesser) * 25mm (Länge) Schraube
  • 4x M2 (Durchmesser) * 20mm (Länge) Schraube

M3 Zubehör:

  • 5x M3 Silikon-O-Ring
  • 5x M3 Nylon Sechskantmutter
  • 1x M3 (Lochdurchmesser) * 6.6mm (Höhe) Anti-Vibrations Silikon Grommets
  • 4x M3 (Durchmesser) * 25mm (Länge) Schraube
  • 4x M3 (Durchmesser) * 20mm (Länge) Schraube
Order number RUN-SB-F4MINI-STACK
EAN 4262453761556
Manufacturer Speedy Bee
