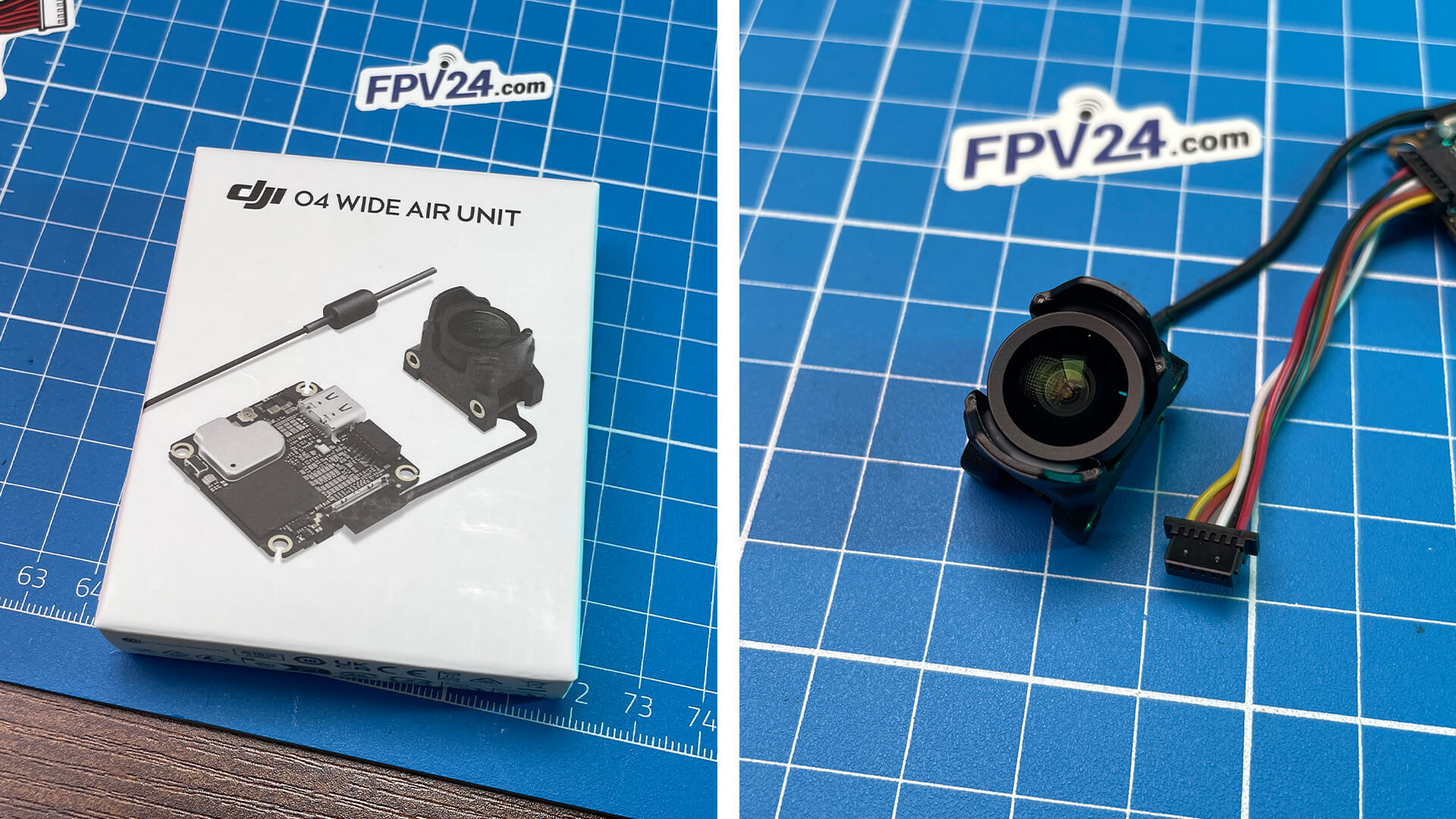

DJI O4 Wide Air Unit: The Long-Awaited Wide-Angle Upgrade

The world of digital FPV has seen a massive leap in performance thanks to the DJI O4 transmission system: crystal-clear images, extremely low latency, and a rock-solid connection. With the lightweight DJI O4 Air Unit (often referred to as Standard/Lite), DJI brought a true lightweight (just 8.2 grams) to the market, designed specifically for micro drones, whoops, and beginners. However, many freestyle and cinematic pilots felt the standard camera was missing one thing: a truly wide field of view (FOV).

Click here for the DJI O4 Wide

That gap is now closed: Make way for the “Wide” Air Unit!

This is exactly where the new DJI O4 Wide Air Unit comes in. It was developed as a direct upgrade to the classic Air Unit and has a decisive ace up its sleeve: an ultra-wide field of view of a whopping 159° (in 4:3 aspect ratio).

This makes it the perfect bridge in the current O4 family:

• The Compact (O4 Air Unit): Ideal for 2-inch builds, racing drones, and ultra-lightweight setups with a strong focus on pure agility.
• The Powerhouse (O4 Wide Air Unit): Offers the same compact and lightweight design, but pairs it with a massive 159° ultra-wide-angle field of view. Perfect for anyone seeking maximum immersion and a clear overview in tight spaces or during long freestyle flights, without having to mount heavy equipment.
• The Pro model (O4 Air Unit Pro): For larger rigs (from 3 inches up to X8 cine lifts) that demand uncompromising high-end cine quality with a larger 1/1.3-inch sensor, 4K/120 fps, and a bitrate of up to 130 Mbit/s.

Highlights of the DJI O4 Wide Air Unit: The Best of Both Worlds

The new DJI O4 Wide Air Unit skillfully bridges the gap between the classic standard version and the uncompromising Pro model. It retains the feather-light design and compact dimensions of the standard Air Unit, but pairs them with a crucial upgrade for demanding pilots. The biggest criticism many freestyle and cinematic pilots had of the first-generation O4 was its comparatively narrow field of view. With the Wide version, DJI responds precisely to this feedback: The field of view (FOV) expands to a whopping 159° in 4:3 format. This allows significantly more of the frame and the immediate surroundings to be seen in the image. It creates an extremely immersive flying experience and provides the confidence needed to maneuver through even the tightest spaces without losing sight of your surroundings. Despite the wide angle, the built-in 1/2-inch CMOS sensor remains, delivering razor-sharp images and enabling onboard recording in 4K/60 fps. This makes it easy to save the weight of an additional action cam on small drones.

Despite the wider field of view, pilots don’t have to compromise on the powerful O4 transmission technology. The system transmits with a maximum signal range of up to 10 kilometers (according to FCC standards) or, within the EU, with an excellent, rock-solid connection. The live feed is transmitted at up to 60 Mbit/s and displayed on the Goggles in smooth 1080p at 100 frames per second. When paired with the DJI Goggles 3 (in Race Mode), the Air Unit also transmits with a minimum latency of just 20 milliseconds.

While the Pro version, weighing over 30 grams and with significantly larger dimensions, is designed more for 5-inch rigs or Cinelifters, the Wide Air Unit remains uncompromisingly optimized for lightweight construction. The transmitter module measures 30 × 30 × 6 millimeters, and the camera measures 20.5 × 14 × 20.5 millimeters. Together, the system weighs 13.3 grams, making it perfect for micro drones, Whoops, toothpick drones, and minimalist lightweight builds. In addition, just like the standard model, the Wide version features 23 GB of built-in storage that saves video recordings directly to the drone. In a direct comparison, the standard Air Unit, weighing 8.2 grams, offers the ultimate weight advantage for the smallest 2-inch frames, but has a narrower field of view. The Pro Air Unit, on the other hand, showcases its strengths with a larger 1/1.3-inch sensor, 4K/120fps recording, and an even lower latency of 15 milliseconds in the 3-inch class and beyond. The Wide Air Unit thus positions itself as the ideal, no-compromise all-around solution for the discerning freestyle and micro pilot.

Installing the DJI O4 Wide

Since the O4 Wide Air Unit, at 13.3 grams, is slightly heavier than the classic standard Air Unit (which weighs only 8.2 grams), the issues of vibration and damping play a role that should not be underestimated in ensuring smooth flight and recording results. If a disruptive rolling-shutter effect (shaking or so-called “jello” effects in the image) occurs during operation—especially when electronic image stabilization is activated—this is usually due to the transmission of mechanical vibrations from the frame to the camera housing. To counteract this, you should first check the vibration-damping design between the camera and the drone frame and, if necessary, make it softer. It’s also advisable to check that the screws securing the camera to the drone are tight. Due to the aforementioned weight difference, the Wide variant requires a slightly softer damping structure than the heavier Pro model to achieve exactly the same vibration-free image stability.

The DJI O4 Wide’s camera has different dimensions than that of the O4 (Lite). Fortunately, the hole spacing has remained identical at 16 mm.

Who is the new Wide Air Unit the perfect choice for?

With the introduction of the DJI O4 Wide Air Unit, DJI has meaningfully rounded out its ecosystem and bridged the gap between the feather-light standard version and the no-compromise Pro model. But which version is the best fit for your copter?

• The classic DJI O4 Air Unit (Standard/Lite): Weighing a feather-light 8.2 grams, it remains the top choice for absolute minimalists, tiny 2-inch whoops, and no-compromise racing drones where every tenth of a gram determines victory or defeat.
• The new DJI O4 Air Unit Wide: It’s the absolute “sweet spot” for the vast majority of FPV pilots. If you fly micro drones, toothpicks, or lightweight 3-inch freestyle rigs, you’ll finally get the immersive 159° wide-angle field of view you need for precise maneuvers and weaving through tight gaps. Weighing in at 13.3 grams, it’s barely any heavier, but thanks to its built-in 23 GB of storage, it lets you save silky-smooth 4K/60 fps footage directly on the copter—without the added weight of an action cam.
• The DJI O4 Air Unit Pro: The high-end powerhouse for larger rigs starting at 3 inches, Cinelifters, or professional film drones. It stands out with a massive 1/1.3-inch sensor, 4K/120fps, expandable microSD storage, and an even lower latency of 15 milliseconds.

Click here for the DJI O4 Wide

Frequently Asked Questions (FAQ) About the DJI O4 Wide Air Unit

What are the main advantages of the DJI O4 Wide Air Unit compared to the standard version?

The DJI O4 Wide Air Unit is a direct evolution of the classic Air Unit. Its most significant upgrade is the field of view (FOV), which has been expanded to 159°, enabling a significantly wider and more immersive flying experience without adding much weight to the drone.

For which drone models and sizes is the Wide Air Unit suitable?

Thanks to its compact dimensions and feather-light weight of 13.3 grams, the system is ideally suited for micro drones, Whoops, Toothpicks, and lightweight freestyle builds up to 3 inches in size.

Which flight control firmware is supported?

The DJI O4 Air Unit series—including the Wide variant—officially supports Betaflight version 4.3.0 and later, as well as INAV version 8.0.1 and later, and all newer versions of each.

Can videos be recorded directly on the Air Unit?

Yes, the Wide Air Unit features 23 GB of built-in storage. This allows you to save high-resolution 4K/60fps video recordings directly to the copter, eliminating the need to carry a separate action cam.

What should I do if, after connecting to the DJI Goggles, only the live feed is visible but no OSD information is displayed?

If the telemetry (on-screen display) is missing, check whether the video transmission channel is set correctly and whether the OSD has been enabled in the video transmission settings of the goggles or the flight controller.

What should you keep in mind regarding vibrations during flight or rolling shutter effects (jello)?

Mechanical vibrations can be transmitted from the frame to the camera housing. Since the Wide version, at 13.3 grams, is slightly heavier than the standard model (8.2 grams), it requires a correspondingly softer, vibration-dampening structure as well as tightly fastened screws to ensure a completely stable image.

How is the Air Unit activated?

For initial setup and activation, the transmitter or communication module must be powered via the flight controller or the flight battery.

What is the hole spacing for the threads on the DJI O4 Wide camera?

The thread hole spacing on the DJI O4 Wide camera is 16 mm.
