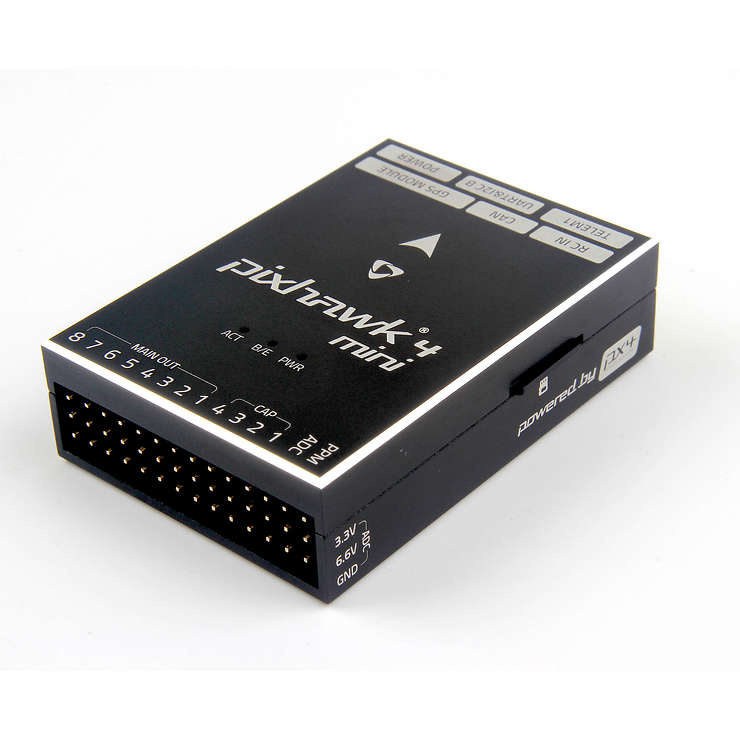

Pixhawk 4 Mini
The Pixhawk® 4 Mini Autopilot is designed for engineers and hobbyists who want to harness the power of Pixhawk 4, but work with smaller drones. Pixhawk 4 Mini uses the Pixhawk 4's FMU processor and memory resources, eliminating interfaces that are not normally used. This allows the Pixhawk 4 Mini to be small enough to fit in a 250 mm racer drone.
Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the design standard Pixhawk FMUv5 and is optimized for the execution of the flight control software PX4.
Pixhawk4 Mini Firmware Version: 1.8.0 dev
Short Summary
Main FMU processor: STM32F765
32 bit Arm® Cortex® M7, 216 MHz, 2 MB memory, 512 KB RAM
On-board sensors:
Accel / Gyro: ICM-20689
Accel / Gyro: BMI055
Magnetometer: IST8310
Barometer: MS5611
GPS: ublox Neo-M8N GPS / GLONASS receiver; integrated magnetometer IST8310
interfaces:
8 PWM outputs
4 dedicated PWM / Capture inputs on the FMU
Dedicated R / C input for CPPM
Special R / C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
3 universal serial interfaces
2 I2C ports
3 SPI buses
1 CAN bus for CAN ESC
Analog inputs for voltage / current of the battery
2 additional analogue inputs
Power system:
Power Brick input: 4.75 ~ 5.5V
USB power input: 4.75 ~ 5.25V
Servo bus input: 0 ~ 24V
Maximum current detection: 120A
Weight and dimensions:
Dimensions: 38 x 55 x 15.5 mm
Other properties:
Operating temperature: -40 ~ 85 ° C
Delivery Content (20054)
Pixhawk4 mini * 1
Pixhawk4 GPS MODULES * 1
PM06 V2 Power Management Board * 1
I2C splitter board * 1
6 to 6 pin cable (power) * 1
4 to 4 pin cable (CAN) * 1
6 to 4 pin cable (Data) * 1
6 to 4 pin and 4 pin "Y" cable * 1
6 to 6 pin cable (debug) * 1
PPM / SBUS out cable * 1
XSR receiver cable * 1
DSMX receiver cable * 1
SBUS receiver cable * 1
USB cable * 1
'X'type folding pedestal mount * 1
70mm & 140mm carbon rod stand off * 2
Foam Set * 1
Pixhawk4 mini Quick Start Guide * 1
| Bestellnummer | HOL-20054 |
|---|---|
| EAN | 4260449987010 |
| Hersteller | Holybro |
